美國NDT James T-S-30 Aquaprobe微波土壤含水率測試儀

美國NDT James T-S-30 Aquaprobe微波土壤含水率測試儀，代表著現代水分測量技術的突破。利用最新的微波及微型處理器技術, T-S-30 Aquaprobe微波土壤含水率測試儀可測量泥土及幼細聚合物的水含量。

產品名稱：土壤含水率測試儀

型號：T-S-30

廠家：美國NDT James

美國NDT James T-S-30 Aquaprobe微波土壤含水率測試儀代表著現代水分測量技術的突破。利用最新的微波及微型處理器技術, T-S-30 Aquaprobe微波土壤含水率測試儀可測量泥土及幼細聚合物的水含量。簡單地將五根叉子插入泥土去量度及檢視水分百份比。同時提供特別的使用指引, 讓使用者將叉插入特定密度的泥土。

The James Aquaprobe? T-S-30 Soil Moisture Meter

A microwave meter for rapid determination of moisture content in different types of soils.

Applications

Highway and Road Contractors
Geotechnical Engineering
Foundation Engineering
Golf Courses
Earth Moving Works
Agriculture

Features & Benefits

· Fast and easy to use.

· No hazardous chemicals.

· Accurate.

· Completely portable.

· Easy to read display.

· Instantaneous readings.

Product Information

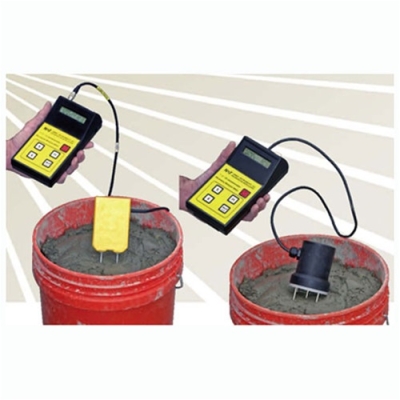

The James Aquaprobe? represents a break-through in modern moisture measurement technology. By utilizing the latest microwave and microprocessor technology, the Aquaprobe? can determine the soil moisture content of different types of soils and other fine aggregate. Simply insert the five prongs in the soil to be measured and review the percentage moisture on display. A special guide is supplied to assist the user with inserting the prongs in particularly dense soil.

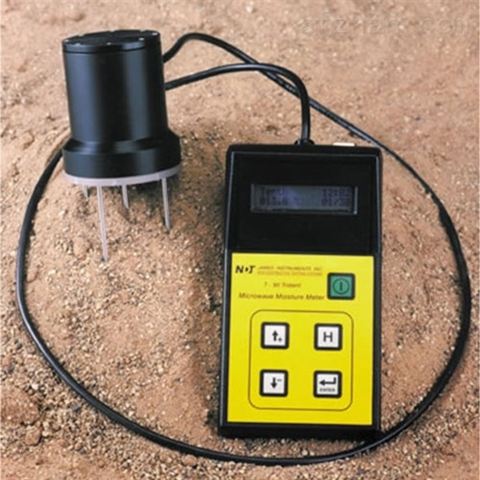

The Aquaprobe? Microwave Soil Moisture Meter uses a five prong sensor to measure the complex dielectric constant of the material encompassed by the outer four prongs. As the dielectric constant of water is four to eight times greater than most natural soil types, changes in water content directly affect the sensor output. This output is then converted by the integrated microprocessor and moisture content is displayed directly as a percentage of dry weight. An average of five to ten readings is normally taken in order to ensure a valid reading, especially as water does not distribute itself evenly for many types of materials.

The basic unit comes pre-calibrated for Lean Clay, Silt, Sand (Ottawa Sand and SP sand) and general type of Silty Sandy soil. These soils represent the most commonly found types. This makes the basic unit the economical choice when evaluating soil moisture levels.

The complete system includes equipment to create custom calibration curves for different types of soil. The instrument can be programmed with up to ten different materials by the user. For highest accuracy, the unit should be programmed for the material being tested. Simple to use Windows? software is provided for calibrating the unit to the various materials.

Finally, the Aquaprobe? instrumentation unit can store over 150 readings. Storage is complete with the time and date for future reference. Data can be recalled via USB interface to a personal computer running Windows?.

Specifications

Probe
Measurement Range	0 - 15% by Dry Weight
Frequency:	50 Mhz
Power:	2 AA Batteries
Display:	4 x 16 Char. Trans - reflective
Data Link:	USB
Weight:	4 lbs. (1.8 kg)
